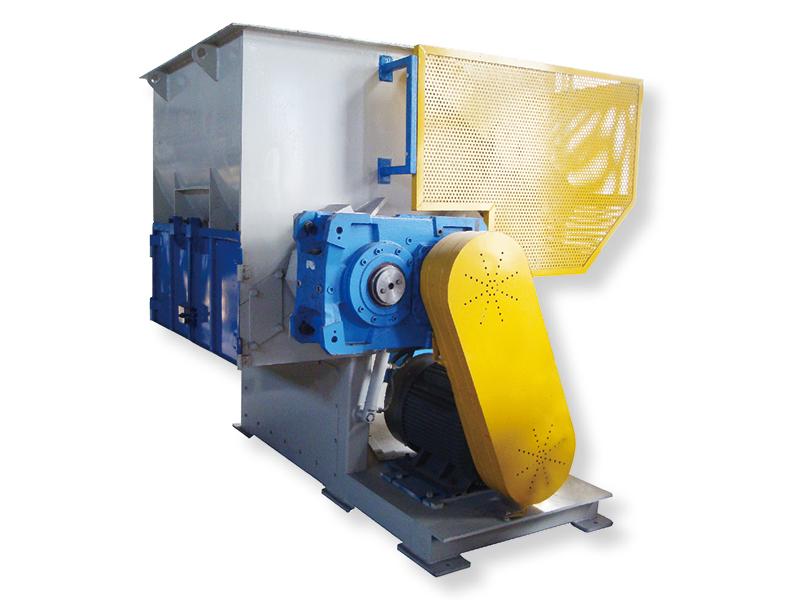

Industrial Shredder
SH

Industrial Shredder

  • Equipped with powerful two-speed swing type hydraulic pusher, which avoids the occurrence of jamming and reduces the wear of the inner rail.
  • The single-shaft shredder is driven by a low-speed and high-torque reducer.
  • This shredder has a smaller footprint than the conventional shredder with horizontal pusher.
  • The bolted drive shaft makes replacement easier.
  • Rotors available in a variety of models and materials.
Request a Quote
Technical Parameters
Model SH-80 SH-90 SH-120 SH-150 SH-200
Rotor width/rotor diameter (mm) 850/387 850/457 1200/457 1500/457 2000/457
Power (kw) 37 55 55 75 2 ×55
Blade quantity (pcs) 40/60 40/60 54/81 68/102 96/144
Working area (mm) 690×730 800×730 800×1010 800×1290 800×1850
Applications

It can meet the requirements of waste crushing and recycling in various industries, including general waste recycling, electronic waste recycling and domestic garbage recycling, such as: various plastic products (blocks, tubes, films, woven bags, etc.), as well as various types of electronic cable waste, ICB barrels, waste paper, waste wood and various organic materials.
