Jet Mill

Jet Mill

Powder processing equipment for the production of battery cathode materials

Optimized for processing battery materials like lithium titanate, lithium carbonate, lithium hydroxide, and lithium iron phosphate, this jet mill is designed to deliver both high precision and efficiency in ultrafine grinding applications.

This jet mill is optimized for processing various battery materials, including lithium titanate, lithium carbonate, lithium hydroxide, and more advanced compounds like lithium iron phosphate and lithium manganese oxide. Its efficiency also extends to materials such as cobalt oxides and ferrous oxalate, ensuring precise and consistent results in high-performance applications.

Request a Quote
Features
  • Unlike many mills that sacrifice fineness as they scale up, this system maintains high production capacity while achieving ultrafine particle sizes, capable of producing D50≤1μm
  • Ensures accurate particle classification, providing finer D100 values compared to other milling technologies, both domestically and internationally
  • Features high-purity ceramic linings and advanced wear-resistant coatings, preventing contamination from magnetic materials and preserving product purity
  • Offers flexibility with closed-loop air or nitrogen circulation options, ensuring the product retains low moisture and maintains its high purity
  • Designed for durability, the machine's components are tested for fatigue strength, ensuring a finely crafted system that can last over 25 years

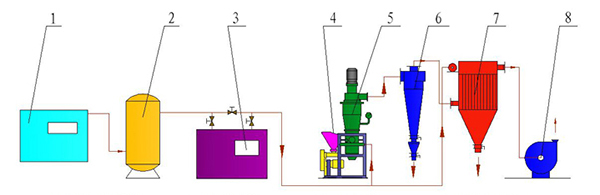

Flow Chart

1. Air compressor
2. Air tank
3. Refrigerated air dryer
4. Material feeder

5. Grinding system
6. Cyclone separator
7. Bag filter
8. Draft fan
