Tap Density Machine

Tap Density Machine

Powder processing equipment for the production of battery anode materials

Designed for shaping artificial graphite, spheroidizing natural graphite, and producing high tap density coke, this tap density machine is a proprietary solution developed for high tap density applications.

Request a Quote
Features
  • The innovative design effectively removes sharp particle edges, enhancing particle roundness and significantly increasing tap density—over five times more efficient than traditional shaping machines
  • Capable of processing over 1 ton per hour, this tap density machine offers a fivefold increase in throughput compared to conventional systems, making it ideal for large-scale production of high tap density, spheroidized products
  • Equipped with a high-precision self-diffusing classifier, ensuring accurate cut points, uniform particle size distribution, and no increase in fine powder content in the final product
  • Built for continuous 24-hour operation, providing consistent quality for high-volume, high-quality production, with durable components designed for long-term use
  • Manufactured with materials that are rigorously tested for fatigue strength, to ensure a lifespan of over 20 years

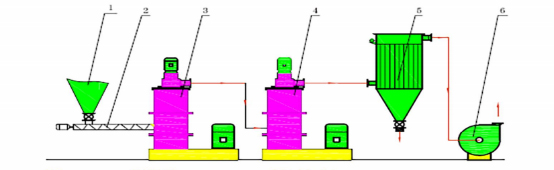

Flow Chart

1. Hopper
2. Screw feeder
3. Tap density machine

4. Tap density machine
5. Bag filter
6. Draft fan

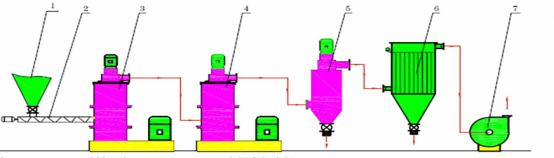

Flow Chart

1. Hopper
2. Screw feeder
3. Tap density machine I
4. Tap density machine Ⅱ

5. Air classifier
6. Bag filter
7. Draft fan
