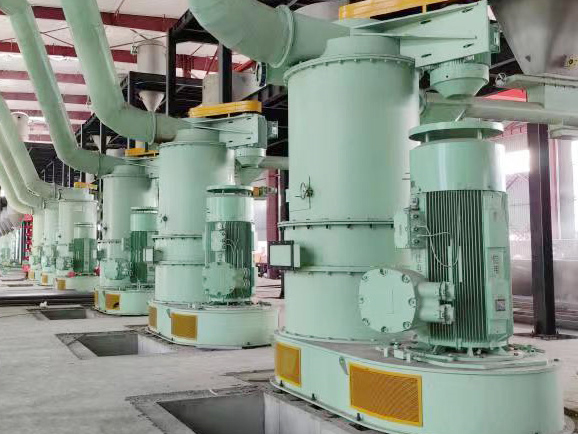

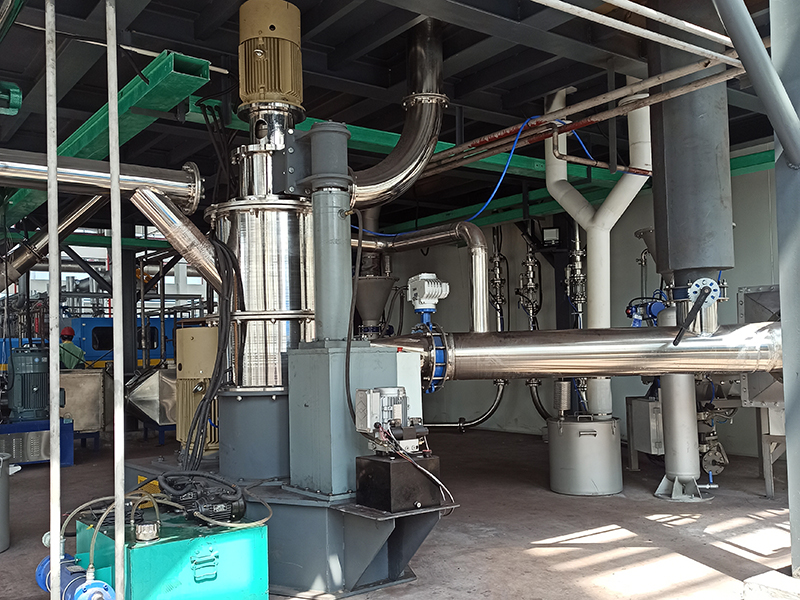

Superfine Impact Mill

Powder processing equipment for the production of battery anode materials

Superfine Impact Mill
Request a Quote
  • Consistent fineness: Unlike many mechanical mills that lose precision as the equipment size increases, this mill maintains fine particle sizes, achieving outputs as fine as D50 < 4μm, while also handling large volumes
  • Optimized for anode production: Ideal for producing anode coke, ensuring a narrow particle size distribution and a higher yield compared to conventional milling systems
  • Precision and efficiency: Delivers accurate classification with minimal over-grinding, resulting in products with superior particle size distribution, offering smaller D100 values and higher D10 values than other mill
  • Reliable continuous operation: Built for 24/7 operation, this mill ensures stable, consistent production quality over long periods, making it perfect for large-scale, high-quality material processing. Wear parts are designed for durability
  • Built for longevity: Constructed from materials tested for fatigue strength, this finely engineered machine is equipped with oil lubrication and water cooling, offering a lifespan of over 20 years
Process Flow

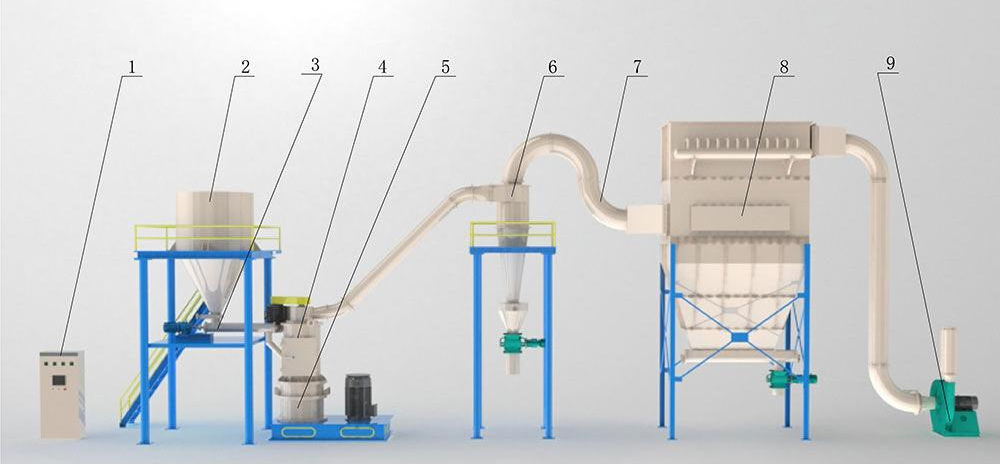

Flow Chart

1. Electric control cabinet
2. Hopper
3. Material feeder
4. Classifying system
5. Grinding system

6. Cyclone separator
7. Piping
8. Bag filter
9. Draft fan
